Kabel NYYHY

Kabel NYYHY adalah jenis kabel listrik yang dirancang dengan tegangan nominal 450/750 V, menawarkan kinerja andal untuk berbagai kebutuhan. Kabel ini menggunakan inti penghantar dari tembaga, yang dilapisi isolasi PVC berkualitas tinggi, serta dilindungi oleh lapisan luar berbahan PVC untuk meningkatkan daya tahan terhadap kerusakan.

Kabel NYYHY banyak digunakan sebagai penghubung fleksibel dan kabel kontrol pada mekanisme berat. Dengan desainnya yang tangguh dan fleksibel, kabel ini cocok untuk aplikasi yang membutuhkan daya tahan tinggi serta performa optimal dalam kondisi kerja yang menantang.

Alias

Specification

NYYHY (CU/PVC/PVC) or VV
(Copper Conductor, PVC Insulated, and PVC Sheathed)

SNI IEC 60228

IEC 60227-7

Size Range

[2-5] x [0.75-35] mm2

[6-20] x [0.75-6] mm2

[21-38] x [0.75-4] mm2

[40-60] x [0.75-2.5] mm2

Rated Voltage

450/750 V

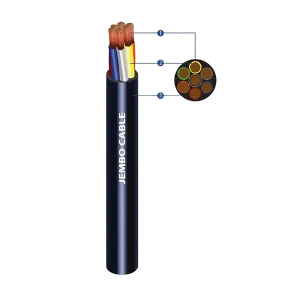

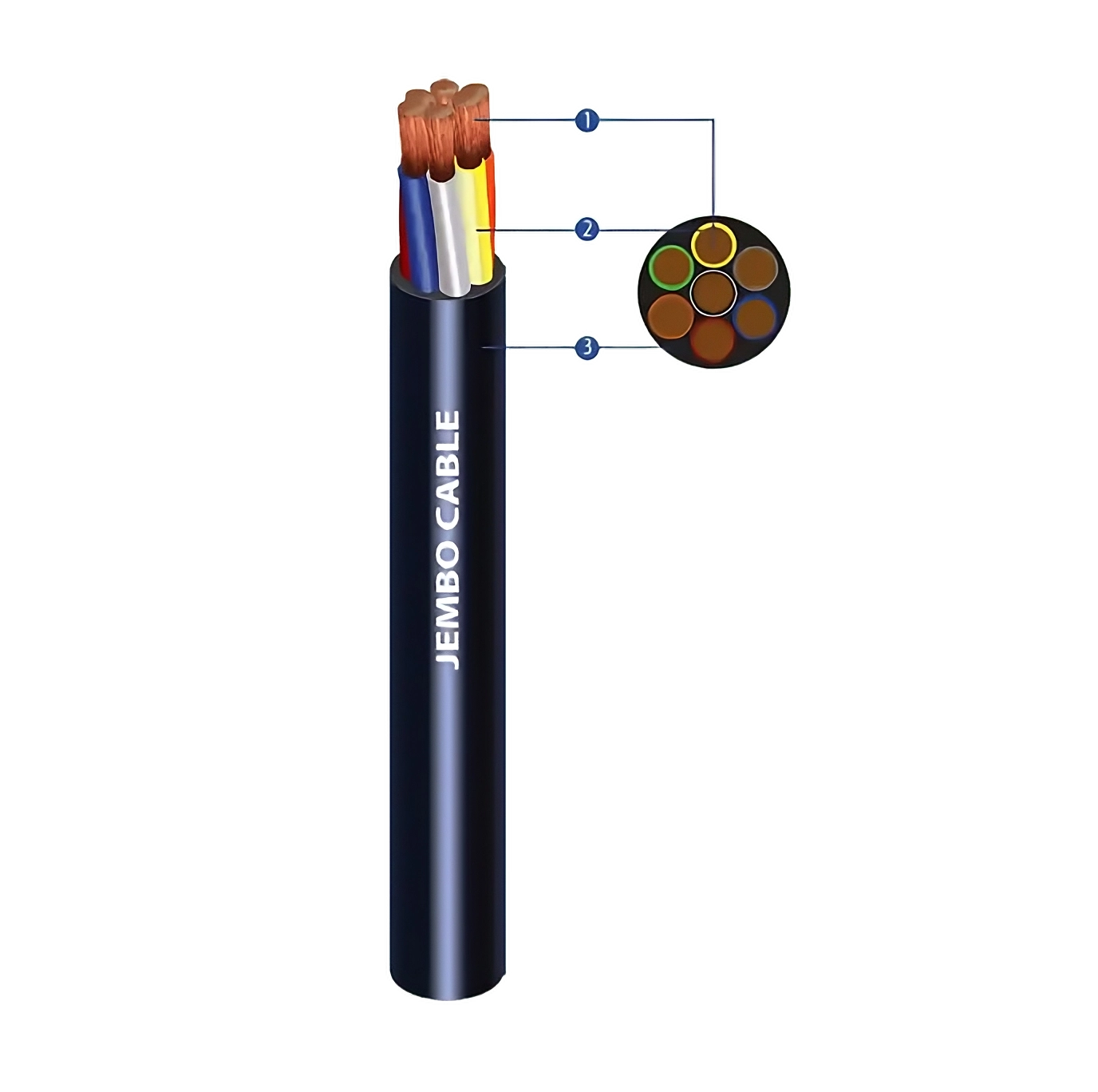

Construction

1. Conductor : Annealed Copper Wire – Class 5 (f)

2. Insulation : Extruded PVC

4. Outer Sheath : Extruded PVC (Black Color)

Application

This cable is suitable for flexible connection and control cable for heavy mechanical stresses with free movements without tensile stress, in dry and wet location, as wiring cable for measuring and controlling in tool machinery, production line plant installation,conveyor belt, air conditioning and rolling mills.

Special Features on Request

Contact us through WhatsApp or e-mail

No. of Core	Conductor			Insulation	Outer Sheath	Approx. Diameter of Cable	Approx. Weight of Cable	Standard Length / Drum
No. of Core	Conductor			Insulation	Outer Sheath	Approx. Diameter of Cable	Approx. Weight of Cable
No. of Core	Nom. Cross Section Area	Max. Diameter of Wire	Nom. Thickness	Nom. Thickness	Approx. Diameter of Cable	Approx. Weight of Cable	Standard Length
No. of Core	mm²	-	mm	mm	mm	kg/km	m
2	0.75	0.21	0.6	0.9	6.6	58	1000
2	1.5	0.26	0.7	1.0	8.0	91	1000
2	2.5	0.26	0.8	1.2	9.8	142	1000
2	4	0.31	0.9	1.4	11.6	205	1000
2	6	0.31	0.9	1.4	13.0	269	1000
2	10	0.41	0.9	1.4	14.6	370	1000
2	16	0.41	0.9	1.4	17.4	541	1000
2	25	0.41	1.1	1.6	21.0	798	1000
2	35	0.41	1.1	1.8	23.8	1067	1000
3	0.75	0.21	0.6	0.9	7.0	68	1000
3	1.5	0.26	0.7	1.0	8.5	109	1000
3	2.5	0.26	0.8	1.2	10.4	171	1000
3	4	0.31	0.9	1.4	12.3	250	1000
3	6	0.31	0.9	1.4	13.8	331	1000
3	10	0.41	0.9	1.6	15.9	480	1000
3	16	0.41	0.9	1.6	19.0	702	1000
3	25	0.41	1.1	1.6	22.4	1013	1000
3	35	0.41	1.1	1.8	25.4	1364	1000
3	50	0.41	1.4	1.8	30.4	1949	1000
3	70	0.51	1.4	2.2	37.6	2854	1000
4	0.75	0.21	0.6	0.9	7.6	84	1000
4	1.5	0.26	0.78	1.0	9.2	135	1000
4	2.5	0.26	0.8	1.4	11.7	224	1000
4	4	0.31	0.9	1.4	13.4	313	1000
4	6	0.31	0.9	1.4	15.1	418	1000
4	10	0.41	0.9	1.6	17.4	607	1000
4	16	0.41	0.9	1.6	20.8	896	1000
4	25	0.41	1.1	1.6	24.7	1299	1000
4	35	0.41	1.1	1.8	28.0	1752	1000
4	50	0.41	1.4	1.8	33.6	2512	1000
4	70	0.51	1.4	2.4	42.0	3711	1000
4	95	0.51	1.6	2.5	47.3	4792	500
4	120	0.51	1.6	2.6	50.7	5890	500
4	150	0.51	1.8	2.8	56.4	7283	500
5	0.75	0.21	0.6	1.0	8.4	102	1000
5	1.5	0.26	0.7	1.2	10.4	168	1000
5	2.5	0.26	0.8	1.4	12.7	263	1000
5	4	0.31	0.9	1.4	14.6	370	1000
5	6	0.31	0.9	1.6	16.9	512	1000
5	10	0.41	0.9	1.8	19.5	743	1000

No. of Core	Conductor			Insulation	Outer Sheath	Approx. Diameter of Cable	Approx. Weight of Cable	Standard Length / Drum
No. of Core	Conductor			Insulation	Outer Sheath	Approx. Diameter of Cable	Approx. Weight of Cable
No. of Core	Nom. Cross Section Area	Max. Diameter of Wire	Nom. Thickness	Nom. Thickness	Approx. Diameter of Cable	Approx. Weight of Cable	Standard Length
No. of Core	mm²	-	mm	mm	mm	kg/km	m
6	0.75	0.21	0.6	1.0	9.1	120	1000
6	1.5	0.26	0.7	1.4	11.7	209	1000
6	2.5	0.26	0.8	1.4	13.8	310	1000
6	4	0.31	0.9	1.4	15.9	438	1000
6	6	0.31	0.9	1.6	18.4	607	1000
7	0.75	0.21	0.6	1.0	9.1	124	1000
7	1.5	0.26	0.7	1.4	11.7	218	1000
7	2.5	0.26	0.8	1.4	13.8	326	1000
7	4	0.31	0.9	1.4	15.9	463	1000
7	6	0.31	0.9	1.6	18.4	644	1000
8	0.75	0.21	0.6	1.4	10.7	158	1000
8	1.5	0.26	0.7	1.4	12.7	244	1000
8	2.5	0.26	0.8	1.4	15.0	366	1000
8	4	0.31	0.9	1.4	17.3	522	1000
8	6	0.31	0.9	1.6	20.1	726	1000
9	0.75	0.21	0.6	1.4	11.7	177	1000
9	1.5	0.26	0.7	1.4	14.0	273	1000
9	2.5	0.26	0.8	1.4	16.7	410	1000
9	4	0.31	0.9	1.6	19.7	603	1000
9	6	0.31	0.9	1.6	22.4	814	1000
10	0.75	0.21	0.6	1.4	12.2	196	1000
10	1.5	0.26	0.7	1.4	14.6	305	1000
10	2.5	0.26	0.8	1.6	17.8	476	1000
10	4	0.31	0.9	1.6	20.6	676	1000
10	6	0.31	0.9	1.6	23.4	914	1000
12	0.75	0.21	0.6	1.4	12.6	216	1000
12	1.5	0.26	0.7	1.4	15.1	338	1000
12	2.5	0.26	0.8	1.6	18.4	531	1000
12	4	0.31	0.9	1.6	21.3	759	1000
12	6	0.31	0.9	1.6	24.2	1031	1000
14	0.75	0.21	0.6	1.4	13.2	242	1000
14	15	0.26	0.7	1.4	15.8	382	1000
14	2.5	0.26	0.8	1.6	19.3	602	1000
14	4	0.31	0.9	1.6	22.4	864	1000
14	6	0.31	0.9	1.6	25.5	1177	1000

No. of Core	Conductor			Insulation	Outer Sheath	Approx. Diameter of Cable	Approx. Weight of Cable	Standard Length / Drum
No. of Core	Conductor			Insulation	Outer Sheath	Approx. Diameter of Cable	Approx. Weight of Cable
No. of Core	Nom. Cross Section Area	Max. Diameter of Wire	Nom. Thickness	Nom. Thickness	Approx. Diameter of Cable	Approx. Weight of Cable	Standard Length
No. of Core	mm²	-	mm	mm	mm	kg/km	m
16	0.75	0.21	0.6	1.4	13.8	271	1000
16	1.5	0.26	0.7	1.4	16.6	431	1000
16	2.5	0.26	0.8	1.6	20.3	681	1000
16	4	0.31	0.9	1.8	24.0	1004	1000
16	6	0.31	0.9	1.8	27.3	1365	1000
19	0.75	0.21	0.6	1.4	14.5	306	1000
19	1.5	0.26	0.7	1.6	17.9	507	1000
19	2.5	0.26	0.8	1.6	21.4	777	1000
19	4	0.31	0.9	1.8	25.3	1149	1000
19	6	0.31	0.9	1.8	28.8	1567	1000
20	0.75	0.21	0.6	1.4	15.3	334	1000
20	1.5	0.26	0.7	1.6	18.9	552	1000
20	2.5	0.26	0.8	1.6	22.6	846	1000
20	4	0.31	0.9	1.8	26.7	1249	1000
20	6	0.31	0.96	1.8	30.5	1704	1000
24	0.75	0.21	0.6	1.6	17.2	398	1000
24	1.5	0.26	0.7	1.6	20.8	635	1000
24	2.5	0.26	0.8	1.6	25.0	978	1000
24	4	0.31	0.9	1.8	29.6	1446	1000
24	6	0.31	0.9	1.8	33.8	1977	1000
27	0.75	0.21	0.6	1.6	17.6	429	1000
27	1.5	0.26	0.7	1.6	21.3	689	1000
27	2.5	0.26	0.8	1.6	25.6	1066	1000
27	4	0.31	0.9	1.8	30.3	1580	1000
27	6	0.31	0.9	1.8	34.6	2166	1000
30	0.75	0.21	0.6	1.6	18.2	466	1000
30	1.5	0.26	0.7	1.6	22.0	752	1000
30	2.5	0.26	0.8	1.8	26.9	1192	1000
30	4	0.31	0.9	1.8	31.4	1731	1000
30	6	0.31	0.9	1.8	35.9	2377	1000
32	0.75	0.21	0.6	1.6	19.5	501	1000
32	1.5	0.26	0.7	1.6	23.7	808	1000
32	2.5	0.26	0.8	1.8	29.0	1279	1000
32	4	0.31	0.9	1.8	33.9	1858	1000
32	6	0.31	0.9	1.8	38.8	2550	1000

No. of Core	Conductor			Insulation	Outer Sheath	Approx. Diameter of Cable	Approx. Weight of Cable	Standard Length / Drum
No. of Core	Conductor			Insulation	Outer Sheath	Approx. Diameter of Cable	Approx. Weight of Cable
No. of Core	Nom. Cross Section Area	Max. Diameter of Wire	Nom. Thickness	Nom. Thickness	Approx. Diameter of Cable	Approx. Weight of Cable	Standard Length
No. of Core	mm²	-	mm	mm	mm	kg/km	m
37	0.75	0.21	0.6	1.6	19.5	553	1000
37	1.5	0.26	0.7	1.8	24.1	923	1000
37	2.5	0.26	0.8	1.8	29.0	1432	1000
37	4	0.31	0.9	1.8	33.9	2089	1000
37	6	0.31	0.9	1.8	38.8	2877	1000
40	0.75	0.21	0.6	1.6	20.3	592	1000
40	1.5	0.26	0.7	1.8	25.1	989	1000
40	2.5	0.26	0.8	1.8	30.2	1537	1000
40	4	031	0.9	1.8	35.3	2246	1000
40	6	0.31	0.9	2.0	40.9	3133	1000
48	0.75	0.21	0.6	1.6	22.2	694	1000
48	1.5	0.26	0.7	1.8	27.5	1164	1000
48	2.5	0.26	0.8	1.8	33.2	1816	1000
48	4	0.31	0.9	2.0	39.3	2697	1000
48	6	0.31	0.9	2.0	45.0	3714	1000
52	0.75	0.21	0.6	1.6	22.8	743	1000
52	1.5	0.26	0.7	1.8	28.2	1248	1000
52	2.5	0.26	0.8	1.8	34.1	1950	1000
52	4	0.31	0.9	2.0	40.4	2899	1000
52	6	0.31	0.9	2.0	46.3	3997	1000
60	0.75	0.21	0.6	1.8	24.5	864	1000
60	1.5	0.26	0.7	2.0	30.3	1445	1000
60	2.5	0.26	0.8	2.0	36.6	2256	1000
60	4	0.31	0.9	2.0	42.9	3306	1000
60	6	0.31	0.9	2.2	49.6	4614	1000
61	0.75	0.21	0.6	1.8	24.5	874	1000
61	1.5	0.26	0.7	2.0	30.3	1464	1000
61	2.5	0.26	0.8	2.0	36.6	2287	1000
61	4	0.31	0.9	2.0	42.9	3354	1000
61	6	0.31	0.9	2.2	49.6	4681	1000

Maximum Conductor Resistance at 20°C

Conductor Size	Plain Annealed Cooper Wire	Short Circuit at 1 Sec.
Conductor Size	Plain Annealed Cooper Wire	Short Circuit at 1 Sec.
mm²	Ohm/km	kA
0.5	33.88	0.60
1.5	16.94	0.12
2.5	9.788	0.21
4	5.944	0.34
6	3.963	0.51
10	2.305	0.87
16	1.536	1.31
25	0.922	2.18
35	0.658	3.05
